Modular doble busbar switchgears with integral gas insulation, up to 36 kV
Technical Details
- Rated voltage: up to 36 kV
- Rated current of main busbar: up to 2000 A
- Rated current of shunt: up to 2000 A
- Rated frequency: 50/60 Hz
- Short-circuit current: up to 31.5 kA (1-3 s)
- Internal arc classification :IAC AFL(R) 25 / 31.5 kA 1 s
Products Details
STANDARDS AND CERTIFICATIONS
Main international and European standards, legislation and specifications: IEC
Specifications

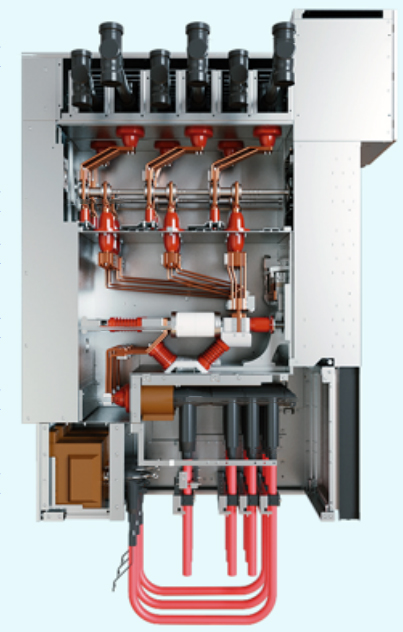

Side view
-Vacuum circuit-breaker
-Earthing switch
-Feeder disconnectors
-Gas pressure relief duct
Main busbar compartment
-Main busbars
Cable compartment
-Bushing
-Current transformers
-Voltage transformers
-Terminals

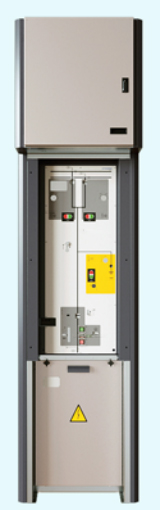

Front view
Control compartment
1.Circuit-breaker driving mechanism
2.Feeder disconnector(s) driving mechanism
3.Earthing switch mechanism
4.Pressure indicator: Pressure gauge
5.Voltage presence/absence indicating
relay
6.Mimic diagram

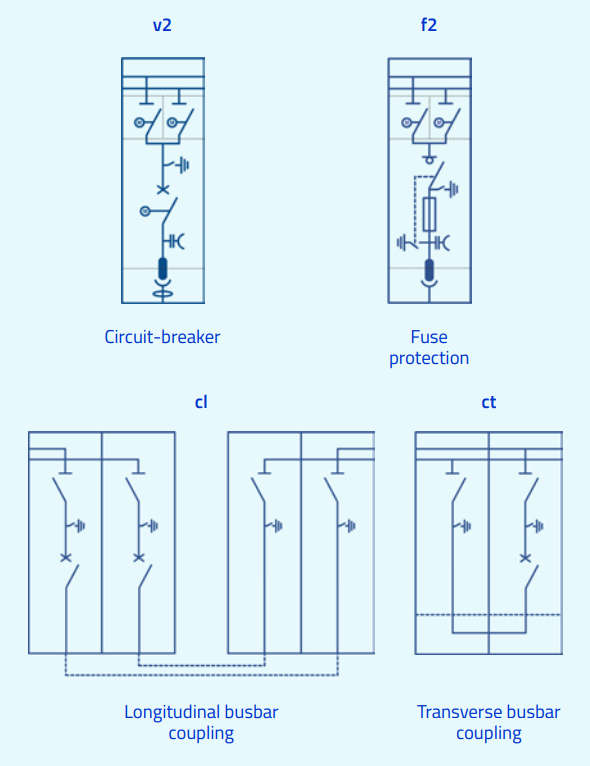

Functions
Parameter
PDF Download
PDF Download
