High Voltage Outdoor Vacuum Circuit Breaker
High Voltage Outdoor Vacuum Circuit Breaker
1.Ratings:voltage 12KV,current up to 1000A,AC50Hz
2.Application:for the control and protection of substation and equipments.Making and breakingload current,overload current and short-circuitcurrent under variousoperating status of electricnetwork.
3.Standard:IEC62271-100
Application
ZW8-12 series adopts vacuum arc extinguishing chamber, air insulation and electric spring operating mechanism, which makes the product have strong arc extinguishing ability, high short-circuit breaking times, no fire and explosion hazard and convenient operation. It is a kind of product with excellent performance. Practical products.
The overall structure of this product adopts three-phase common box type, with casing inlet and outlet lines. The box body is dry coal air. The electric spring operating mechanism is arranged on the side of the box, which can be used reliably under severe environmental conditions.
The vacuum interrupter of this product adopts ceramic shell, cup-shaped longitudinal magnetic field contact structure and copper chromium contact material, which has excellent ability of breaking and closing short-circuit current.
The product has the advantages of small volume, light weight and beautiful appearance. The vacuum interrupter and insulating support sleeve are compact in design, and the outgoing conductive rod is injected with silicone rubber, which can adapt to harsh weather conditions and dirty environment.
Specifications
Working Condition
1.Ambient air temperature:-40℃~+40℃
2.Altitude:≤2000m
3.Service condition with dust,corrosive gas,water vaporor salty fog pollution are acceptable.
4.Wind speed:≤34m/s (Equal to 700Pa over cylindrical surface)
5.Theexternal shocking and earthquake could be neglected.
6.The amplitudeof electromagneticinterference in the secondary system≤1.6kV.
7.Pollution level:IⅡ※Note:Customized products for other specialworking conditions are available on your requirements.
Technical parameters of intelligent terminal controller
1.Power
Rated working voltage:AC220V
Nominal Voltage tolerance:-20%～+20%
Backup power:7Ah lead acid battery *2
Power consumption:≤10W
Rated frequency:50Hz
Waveform distortion:≤5%
2.Rated value
Current transformer:5A,power consumption<1.0VA
Voltage transformer:220V,power consumption<0.5VA
Frequency:50Hz
3.Measuring range and accuracy
Current:(10%～2000%)×In≤±3.0%
Voltage:(10%～150%)×Un≤±0.5%
Frequency:45HZ~65Hz≤±0.1%
4.Protection performance parameters
Event resolution:2ms
Time of quick breaking lockout:≤40ms(1.2ln)
Time error of protection lockout:≤1%
5.Lockout relay
Contact load:16A/250VAC,16A/30VDC
Electrical life:100,000 times
6.Input of switch numberRated voltage:DC24VResolution:2ms
7.EMC characteristics
Insulation resistance:≥10MQ
Insulation strength:2.5kV,1min
Voltage sags and voltage interruption:100%,0.5s
High-frequency interference:Series-mode:1.5KVP,1min
Common-mode:2.5kVP,1min
Transient:4.0kVP,1min
Surge interference:4.0KVP,1.2/50μs
Contact discharge:8kV
Frequency magnetic field:100A/m
Magnetic damping shock:100A/m
Impulse voltage:5kV,1.2/50μs
8.Communication interfaceMain communication interface:RS481(9600bps)
9.Working environment
Working temperature:-40℃~+70℃;Storage temperature:-40℃~+85℃;Humidity:5%~100%
Ambient temperature change rate:<250C/hAtmospheric pressure:70~106KPaNo obvious dust,smoke,corrosive and flammable gas,stream or salt mist.
10.Other technical parameters
Total weight:≤25kg
Protection class of shell:≥IP54
MTBF:≥50,000h
Configuration of current transformer:2~6 bushing current transformers,variable ratio 50/5~1000/5.(Contact us if you have other requirements)
Configuration of voltage transformer:1~2 external voltage transformer,1 cut-out fuse.

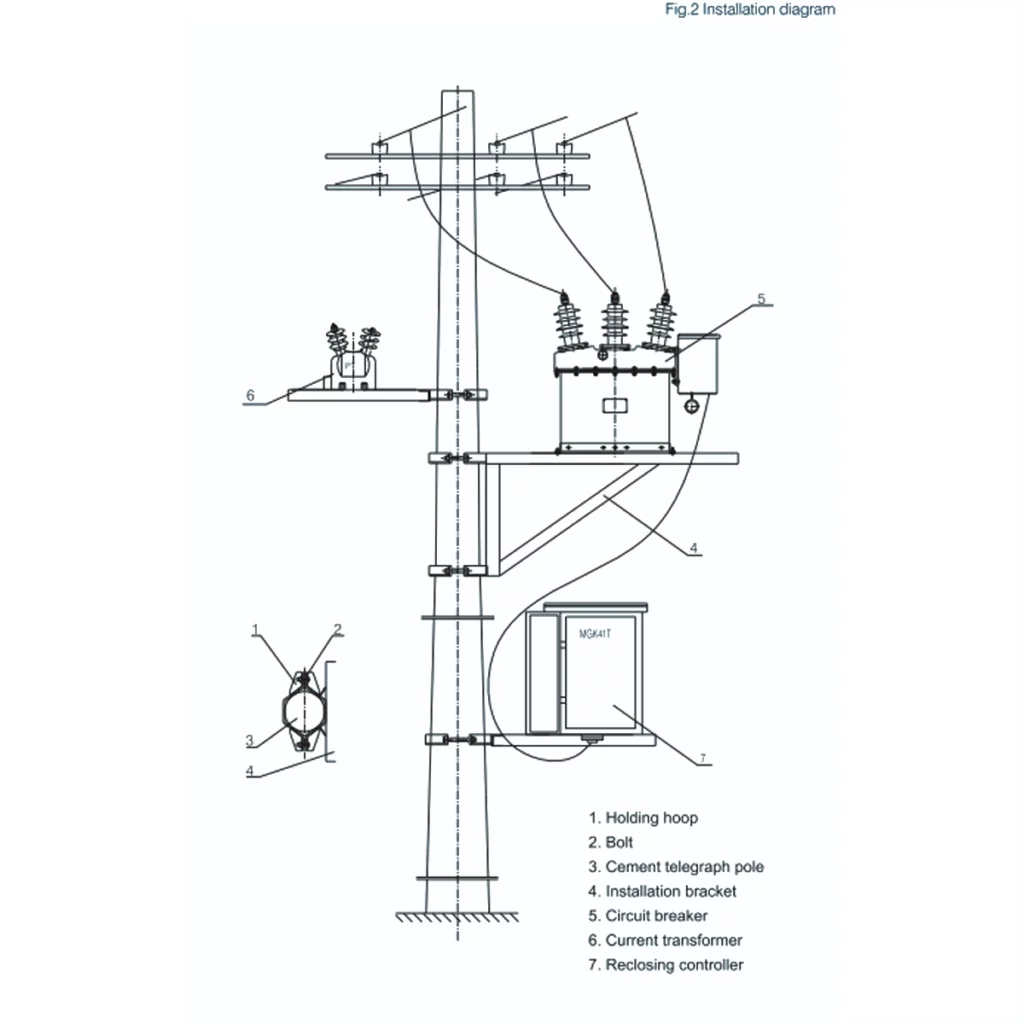

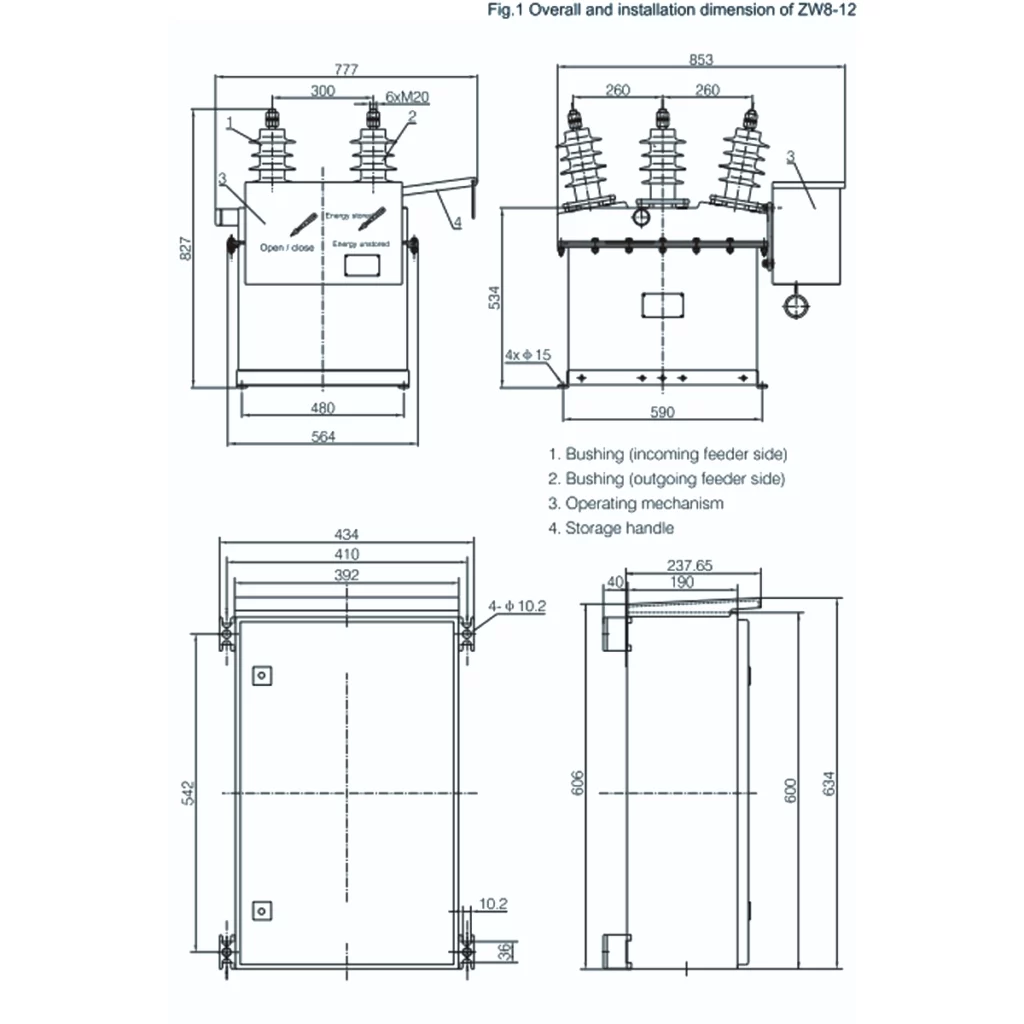

Overall and Installation Dimension
Parameter
| serial number | designation | unit | data |
| 1 | rated voltage | KV | 12 |
| 2 | rated current | A | 630 |
| 3 | Power frequency dry voltage resistance(1min) | 42 | |
| 4 | Lightning impulse withstand voltage | KV | 75 |
| 5 | Rated short-circuit breaking current | KA | 16 20 25 |
| 6 | Rated short-circuit closing current | 40 50 63 | |
| 7 | Rated peak withstand current | KA | 40 50 63 |
| 8 | 4Sshort-time withstand current | 16 20 25 | |
| 9 | Rated operating sequence | Minute -0.3s- combined minute -180s- combined minute | |
| 10 | Rated short circuit current number of breaks Mechanical life | next | 30 |
| 11 | Rated voltage of energy storage motor | 10000 |
