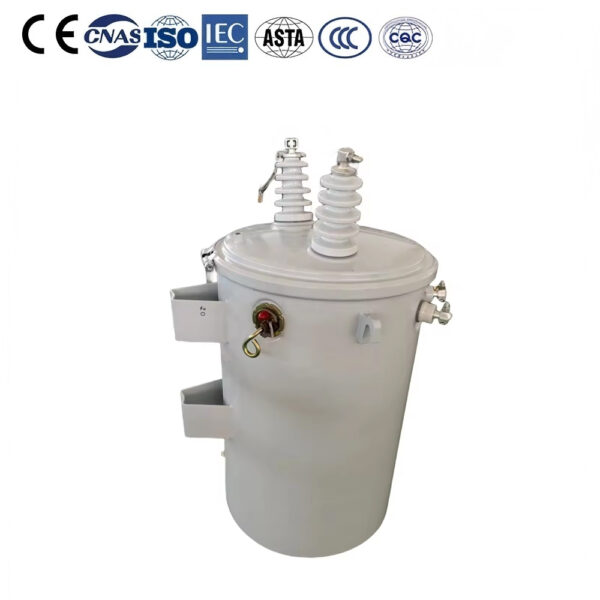

40kVA Pole-Mounted Single-Phase Transformer

Series: D11-M
Application: Distribution
Country of Origin: China
Certifications: ISO9001, CB, CE, KEMA

Application

Uni Electric is a professional manufacturer of distribution transformers with 30 years of experience in single-phase transformer production.
Designed and manufactured for urban and rural power grid distribution, these single-phase overhead transformers are widely used in various regions.
Input Voltage Options:11kV, 12.4kV, 13.2kV, 13.8kV, 34.5kV.
Output Voltage Options:240/480V, 120/240V, etc.
Export Markets:Philippines, Australia, USA, Japan, Dominican Republic, Guyana, Honduras, Peru, Argentina, Venezuela, Chile, and more.
Compliance Standards:IEEE C57, ANSI C57, IEC 60076.

Advanced Winding Technology:Enhances lightning impulse withstand capability.
Low Leakage Flux, High Mechanical Strength, and Superior Short-Circuit Resistance.
High-Quality Core Material:Uses mineral oxide-insulated, cold-rolled grain-oriented silicon steel from leading Chinese manufacturers (Baosteel and Wuhan Steel).
Optimized Core Construction:Precision cutting and stacking processes minimize losses, no-load current, and noise.

Tachnical Data for Single-Phase Pole Mounted Distributation Transformer
Power (KVA)	High Voltage (V)	Low Voltage (V)	Loss(W)		Dimension (mm)			Weight（kg）
			No-load Loss	On-load Loss	W	D	H
5kva	34500/ 19920 13800/ 7957 13200/ 7620 12470/ 7200 or others	120-240 240-480 347 600	19	75	465	485	855	92
10kva			36	120	500	525	885	150
15kva			50	195	520	565	905	210
25kva			80	290	560	590	935	258
37.5kva			105	360	610	625	935	340
50kva			135	500	635	675	1035	395
75kva			190	650	745	840	1035	480
100kva			210	850	770	965	1135	530
