35kV Outdoor Single Phase Current Transformer
35kV Outdoor Single Phase Current Transformer
Application
LZZBW-35 series current transformer is an outdoor epoxy resin casting type, outdoor type, fully enclosed, and pillar-type voltage transformer. It is suitable for power systems with AC 50Hz, rated voltage 35KV and below, for current supply, power measurement and relay protection.
Specifications

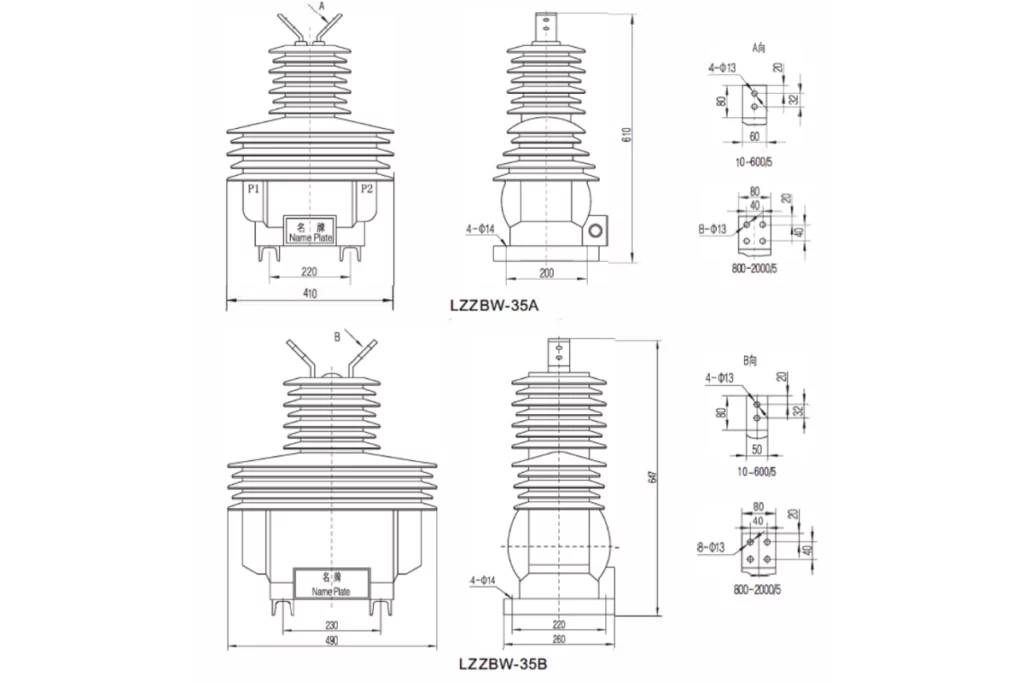

Outline Dimension
Parameter
| Rated transfomation ratio(A) | Accuary dasses combination | Rated output (VA) | ALF | FS | Short-time thermal curent Ith(kA/S) | Rated dynamic current ldyn(kA) | ||
| Measuring | Protective | |||||||
| 0.2(S) | 0.5 | 10P | ||||||
| 10-200/5 | 0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2S/0.5/10P 0.2/0.5/10P | 10 15 | 15 | 15 | 10 15 20 | 5 (10) | 150l1n | 375l1n |
| 300/5 | 31.5 | 80 | ||||||
| 400/5 | 31.5 | 80 | ||||||
| 500/5 | 40 | 100 | ||||||
| 600/5 | 50 | 125 | ||||||
| 800/5 | 20 | 63 | 125 | |||||
| 1000/5 | 80 | 160 | ||||||
| 800~2000/5 | 80 | 160 | ||||||
| Rated transformation ratio(A) | Accuary classes combination | Rated output(VA) | ALF | FS | Short-time thermal Current lth(kA/S) | Rated dynamic current Idyn(kA) | ||
| Measuring | Protective | |||||||
| 0.2(S) | 0.5 | 10P | ||||||
| 10-200/5 | 0.2(S)/0.2(S)/0.5 0.2(S)/0.5/10P 0.2(S)/0.5/10P/10P 0.2(S)/10P/10P/10P | 10 15 | 15 | 15 | 0 10 15 20 | 5 (10) | 150l1n | 375l1n |
| 300/5 | 31.5 | 80 | ||||||
| 400/5 | 31.5 | 80 | ||||||
| 500/5 | 40 | 100 | ||||||
| 600/5 | 50 0 | 125 | ||||||
| 800/5 | 20 | 63 | 125 | |||||
| 1000/5 | 80 | 160 | ||||||
| 800~2000/5 | 80 | 160 | ||||||
