10kV Split core Current Transformer for RMU, GIS
10kV Split core Current Transformer for RMU, GIS
• Complete range of power distribution products (transformers, switchgear, RMU, breakers, and more)
• Factory-direct manufacturing with strict ISO9001 & CE quality control
• OEM/ODM service and customized voltage ratings available
• Fast delivery and professional export support to 40+ countries
• Experienced engineering team for turnkey power distribution solutions
Application
This series of instrument current transformers applicable for AC power system below 10kV measurement of current of power supply equipment, and microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
Specifications
Working conditions
1. Ambient temperature: -35°C~+55°C, not exceeding +40°C.
2. The Height above sea level:0~ 3000m.
3. Atmosphere conditions: No highly polluted, erosion, derisiveness, radioactive gases.

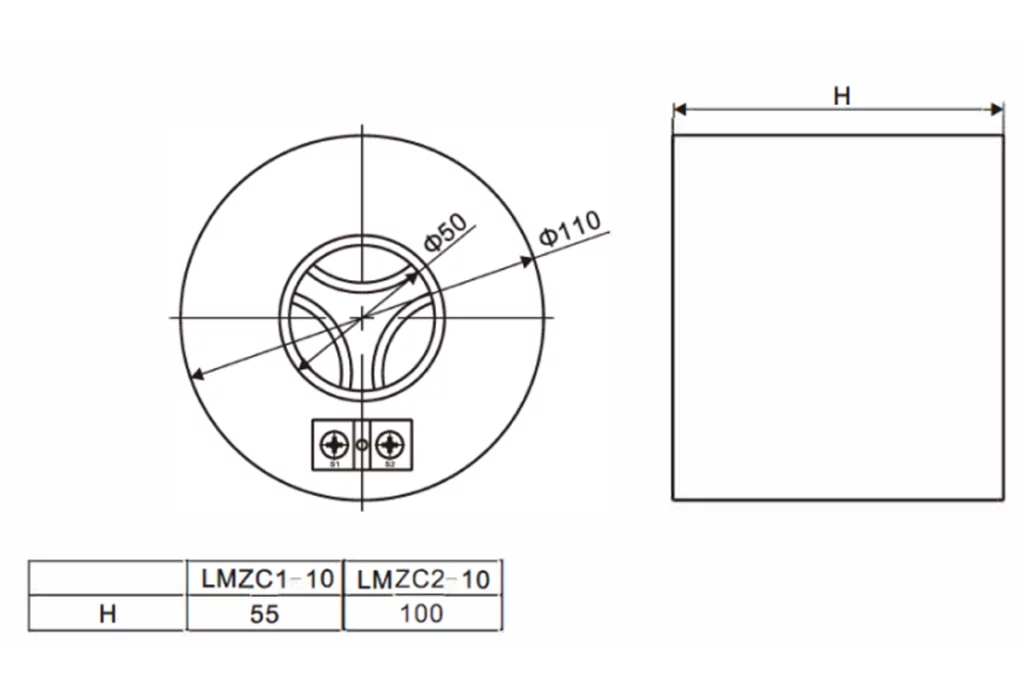

Outline Dimension
Parameter
LMZC1
| Type | LMZC1-10C | LMZC1-10P | LMZC1-10CP | |||||||
| Purpose | Measuring current transformer |
Protective current transformer |
Double winding current transformer |
|||||||
| Ratio | Accuracy class and ratedburden(VA) |
Accuracy class and rated burden(VA) |
Accuracy class andrated burden(VA) |
|||||||
| 0.5 | 1 | 3 | 10P15 | 10P10 | 10P5 | 0.5 | 1 | 10P10 | 10P5 | |
| 50/5 | 2.5 | |||||||||
| 75/5 | 2.5 | 1.5 | ||||||||
| 2000/5 | 2.5 | 2.5 | ||||||||
| 2050/5 | 2.5 | 1.5 | 3.75 | |||||||
| 200/5 | 2.5 | 5 | 2.5 | 5 | ||||||
| 300/5 | 2.5 | 5 | 1.5 | 2.5 | 5 | 2.5 | 1.5 | |||
| 400/5 | 5 | 5 | 1.5 | 2.5 | 5 | 2.5 | 2.5 | |||
| 500/5 | 5 | 5 | 2.5 | 3.75 | 7.5 | 2.5 | 2.5 | |||
| 600/5 | 5 | 5 | 2.5 | 5 | 10 | 2.5 | 2.5 | |||
LMZC2
| Type | LMZC2-10C | LMZC2-10P | LMZC2-10CP | |||||||
| Purpose | Measuring current transformer |
Protective current transformer |
Double winding current transformer |
|||||||
| Ratio | Accuracy class and rated burden(VA) |
Accuracy class and ratedburden(VA) |
Accuracy class and rated burden (VA) |
|||||||
| 0.2 | 0.5 | 1 | 10P15 | 10P10 | 10P5 | 0.5 | 1 | 10P10 | 10P5 | |
| 50/5 | 2.5 | 2.5 | ||||||||
| 75/5 | 2.5 | 2.5 | 2 | 1.5 | ||||||
| 2000/5 | 2.5 | 5 | 2.5 | 5 | 2.5 | 2.5 | ||||
| 2050/5 | 2.5 | 5 | 2.5 | 5 | 2.5 | 2.5 | ||||
| 200/5 | 3.75 | 7.5 | 3.75 | 7.5 | 3.75 | 2.5 | ||||
| 300/5 | 2.5 | 5 | 3.75 | 5 | 10 | 2.5 | 5 | 2.5 | 5 | |
| 400/5 | 5 | 7.5 | 3.75 | 5 | 10 | 5 | 5 | 2.5 | 5 | |
| 500/5 | 5 | 7.5 | 5 | 7.5 | 15 | 5 | 5 | 3.75 | 7.5 | |
| 600/5 | 5 | 10 | 5 | 7.5 | 15 | 5 | 5 | 3.75 | 7.5 | |
