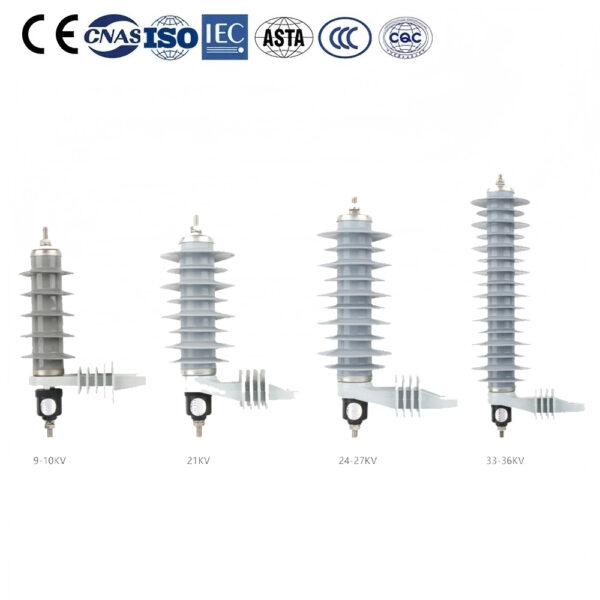

10KA 3kv – 36kv Polymer Housing Lightning Arrester

Application

● The zine oxide arrester is the most advanced over-voltage protector in the world;Due to make the risistor disc of core componet mainly adopt zine oxide arrester.Compared with the conventional silicon carbide arrester, this presciption of theproduct improves gr-eatly the volt-Ampere characterisics of the resistor disc andincreased through-current capability at over-voltage so as to dring arad-icalchanges for the characteristics of the arresters.

● Under the circumstance of normal operating voltage, the current through thearrester is just on microampere degree, When suff-ered from over-voltage, thearrester’s excellent nonlinear characteristics will make the current through thearrester incrase to several thousand amperse, while the arrester will be under thecirculating state and release over-voltage energy so as to protecting the powertransmission equipments against the demage caused by th over-voltage.

Specifications

Parameter

Rated Voltage(Ur)	KV	3	6	9	12	15	18	21	24	27	30	33	36
Nominal discharge current(In)	KA	10	10	10	10	10	10	10	10	10	10	10	10
Type		YH10W-3	YH10W-6	YH10W-9	YH10W-12	YH10W-15	YH10W-18	YH10W-21	YH10W-24	YH10W-27	YH10W-30	YH10W-33	YH10W-36
Maximun continuous operating voltage(Uc)	KV	2.55	5.10	7.65	10.20	12.70	15.30	17.00	19.50	22.00	24.40	26.70	29.00
Residual voltage at
-Lightning impule 8/20μs	KV	8.6	17.2	25.8	34.4	43.0	47.5	57.0	66.5	76.0	85.5	95.0	104.5
-Steep current impulse 1/10μs	KV	9.8	19.6	29.4	39.2	49.0	54.5	65.4	76.3	87.2	98.1	109.0	120.0
-Switching impulse 30/60μs	KV	7.3	14.6	21.9	29.2	36.5	40.0	48.0	56.0	64.0	72.0	80.0	88.0
Switching impulse (Peak current)	A	500	500	500	500	500	500	500	500	500	500	500	500
-2ms rectangular current withstand	A	450	450	450	450	450	450	450	450	450	450	450	450
Operating duty
-4/10μs high current impulse withstand	KA	100	100	100	100	100	100	100	100	100	100	100	100
Housing insulation withstand
-Lightning impulse	KV	40	60	65	95	105	120	125	135	155	170	185	190
-Power frequency, (wet)	KV	20	25	30	40	50	55	58	60	65	70	75	85
Partial discharge	PC	< 10
Creepage distance	mm	120	261	414	480	570	630	788	888	945	1095	1254	1350
Creepage distance/ rated voltage ratio	mm/kv	40.0	43.5	46.0	40.0	38.0	35.0	37.5	37.0	35.0	36.5	38.0	37.5

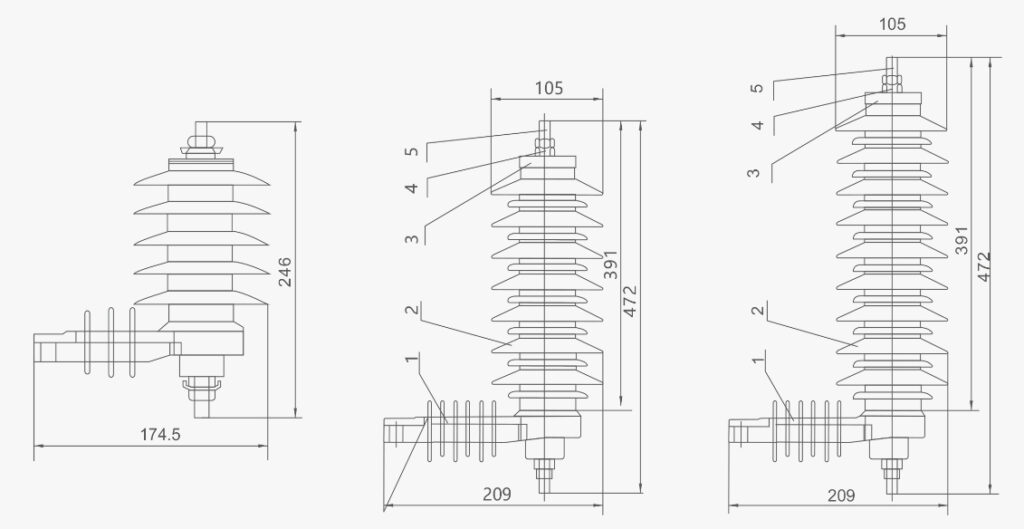

Mechanical section length (Drawing”H”)	mm	93	113	155	174	198	217	258	281	304	343	384	408
Shed number	pcs	1	3	5	6	7	8	10	11	12	14	16	17
Mechanical strength
-Torsional	Nm	70	70	70	70	70	70	70	70	70	70	70	70
-Cantilever	N	294	294	294	294	294	294	294	294	294	294	294	294
Package data
-Net weight of each unit	Kg	2.05	2.26	3.34	3.68	4.27	4.57	5.33	5.86	6.27	7.04	7.72	8.35
-Dimensions (6PCS/CTN)	cm	31X48X34	33X48X34	37X48X34	39X48X34	41X48X34	43X48X34	48X48X34	50X48X34	53X48X34	56X48X34	60X48X34	62X48X34
Figure No.		Fig.A73	Fig.A74	Fig.A75	Fig.A76	Fig.A77	Fig.A78	Fig.A79	Fig.A80	Fig.A81	Fig.A82	Fig.A83	Fig.A84
