10/11kV outdoor epoxy resin voltage transformer
10/11kV outdoor epoxy resin voltage transformer
·Outdoor epoxy resin voltage transformer
· Single Phase or Two Phase
· Rated voltage: 3.3kV, 6kV, 10kV, 11kV, 12.5kV, 13.8kV
· Metering class of PT: 0.2, 0.3, 0.5, 0.6
· Protection class of PT: 3P, 6P
· Standard: IEC, ANSI, GB
Application
This outdoor epoxy resin type voltage transformer is used in 3.3kV, 6kV, 10kV, 11kV, 12.5kV and 13.8kV power system, for measuring and protection. Phase to grounding voltage transformer with R3 of primary system voltage. It has been used in outdoor pole mounted and transmission line.
Specifications
Both phase to phase voltage transformer and phase to grounding voltage transformer are made from high quality ultraviolet-proof epoxy resin, high quality CRGO core for metering and protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.
Standard
All instrument transformers are in conformity with IEC standards, and recommendations IEC 61869. Transformers in conformity with specific country standards can also be supplied. (IEEE C57.13, NBR6855).

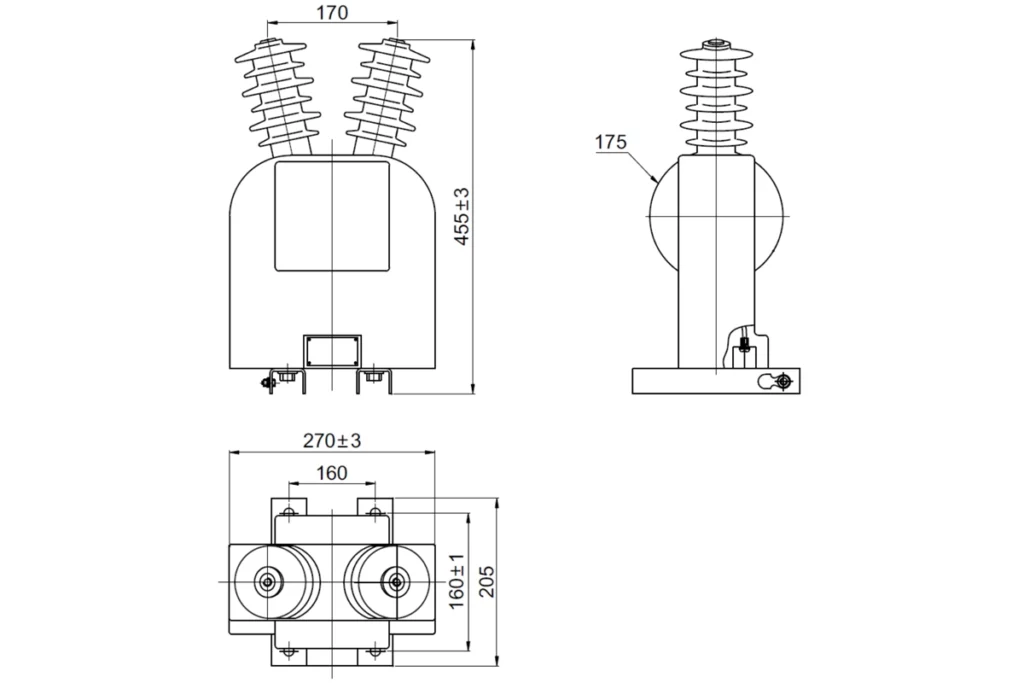

Overall dimension
Products can be customized by customer requirements, above dimension may change, correct dimension please contact us.
Parameter
| Type | Voltage ratio(kV) | Accuracy class and rated output (VA) | Limit output (VA) | ||
| 0.2 | 0.5 | 1 | |||
| JDZW-6 | 6/0.1 | 25 | 50 | 100 | 400 |
| JDZW-10 | 10/0.1 | 30 | 50 | 100 | 400 |
| JDZXW-6 | 6000/√3/100/√3/100/3 | 45 | 90 | 100 | 960 |
| JDZXW-10 | 10000/√3/100/√3/100/3 | 45 | 90 | 100 | 960 |
