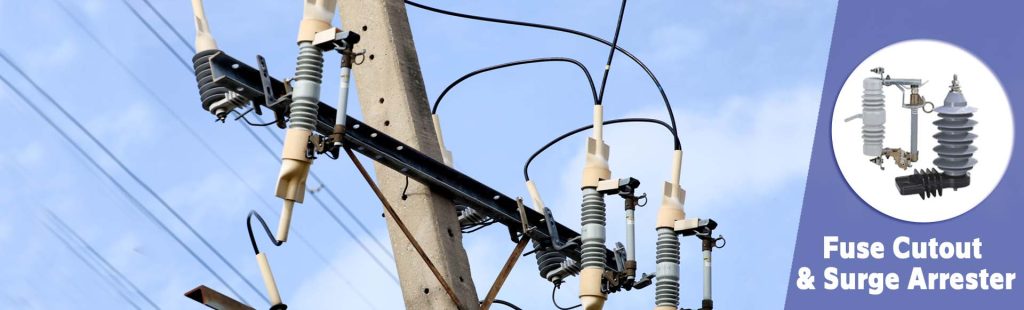

Fuse Cutout & Surge Arrester for Power Pole Distribution Line Protection
1. Fuse Cutout (Dropout Fuse)

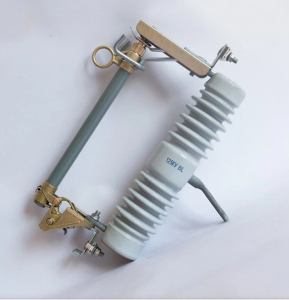

A Fuse Cutout, also known as a Dropout Fuse, is a protective device used in overhead distribution lines and mounted on power poles. It operates by interrupting the circuit when the current exceeds a predetermined value. The fuse element melts due to excessive heat generated by overcurrent, thereby disconnecting the circuit and preventing damage to downstream equipment.
Fuse Cutouts are widely used in both high and low voltage distribution systems and control panels. As a critical component for short-circuit and overcurrent protection, they are one of the most commonly applied protective devices in electrical networks.
Structure of a Fuse Cutout A typical Fuse Cutout includes three main components:
Insulated Fuse Cutout Body Constructed from durable porcelain or polymer, the body provides mechanical support and electrical insulation between the live parts and the mounting structure, typically a power pole or crossarm.
Fuse Holder (Insulating Fuse Tube) This tube houses the replaceable fuse link. When the fuse melts due to an overcurrent event, the holder drops down from its hinge, visibly indicating a blown fuse. Linemen can also manually open the circuit using a hot stick. The holder can be replaced with a solid blade to function as a disconnect switch for maintenance purposes.
Fuse Link (Fuse Element) The fuse link is the replaceable part that melts during an overcurrent, breaking the circuit. It is designed to respond precisely to specific overload conditions.
2. Surge Arrester (Lightning Arrester)

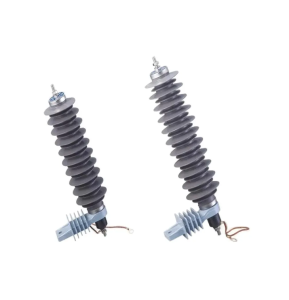

A Surge Arrester is an essential device used to protect electrical equipment on power poles and distribution lines from high-voltage transients caused by lightning strikes, switching operations, or other surge events. Also referred to as a lightning arrester, overvoltage protector, or overvoltage limiter, it ensures insulation integrity and prevents damage to communication cables, transformers, and other electrical devices.
Function of a Surge Arrester Under normal operating conditions, the surge arrester remains inert, acting like an open circuit. However, when an overvoltage occurs—such as during a lightning strike—it rapidly conducts the surge current safely to ground. This limits the voltage reaching the protected equipment, preserving system integrity.
Once the surge has passed, the arrester automatically resets and returns to its non-conductive state, allowing the electrical system to resume normal operation.
Key Features Ideal for use on power pole-mounted distribution systems
Provides reliable overcurrent protection with the Fuse Cutout
Offers high-performance transient voltage protection with the Surge Arrester
Designed for easy installation, maintenance, and fuse replacement
Applications Overhead power distribution lines
Pole-mounted transformer protection
Substation feeder protection
Power utility networks in rural, industrial, and urban areas
